A flagship project for solar-powered, off-the-grid hydrogen ecosystems

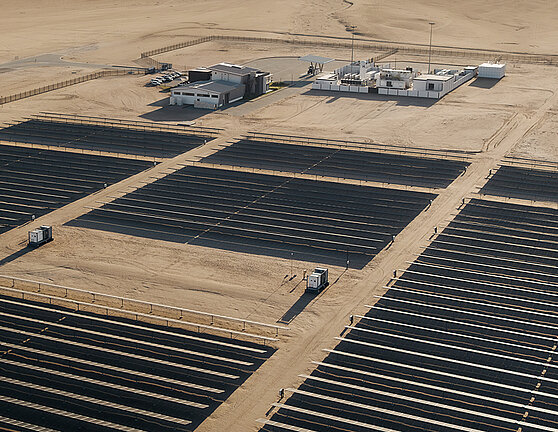

The project in Walvis Bay is Africa’s first integrated green hydrogen plant and a flagship project for solar-powered, off-the-grid hydrogen ecosystems. It demonstrates how industrial-scale renewable energy can be produced independently from the grid with high-quality solar PV, battery storage and green hydrogen components. Altenso has taken on a new and unique project scope: from delivering and commissioning medium-voltage power stations for PV and BESS, to installing a 40-foot rectifier system for solar-based electrolysis. The company has made a comprehensive contribution to enabling large-scale hydrogen production and efficient operations. The Hydrogen Dune plant belongs to CMB.TECH, a Belgian maritime group.
Project Figures
Amount MVPS
Hydrogen: 1 x 40‘ MVPS with 2 x SMA EC-UP
PV: 2 x MVPS 2800-S2
BESS: 2 x MVPS 4200-S2
PCU Capacity
5 MW
Electrolyzer
PEM
Battery Capacity
5.9 MWh
Monitoring
Altenso’s energy management system
Role
AC/DC Integrator
Altenso's energy management system
The central intelligence behind the entire plant is our energy management system. It combines forecasts for solar PV, hydrogen demand, and auxiliary loads with detailed digital models of the plant’s components.
It balances energy production with energy demand several days in advance, optimizing plant’s efficiency, and assuring energy availability in times of low or no PV power input. Everything operates as one smart, synchronized ecosystem which maximises the value of the plant by increasing output while reducing operational costs.
SMA System Technology
Our rectifiers are manufactured in a serial mass production in Niestetal (Germany). We keep highest production standards and deliver worldwide even to very remote and secluded locations.

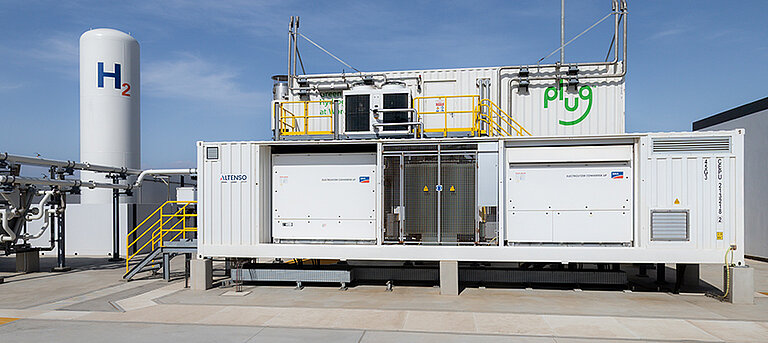

40 foot container with two converter units
Integrated plug and play solution

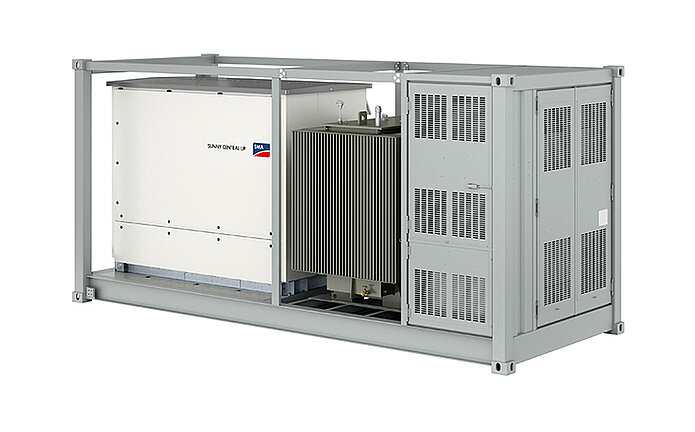

20 foot Medium Voltage Power Station (MVPS)
The most compact combination of a central inverter, transformer, and switchgear
